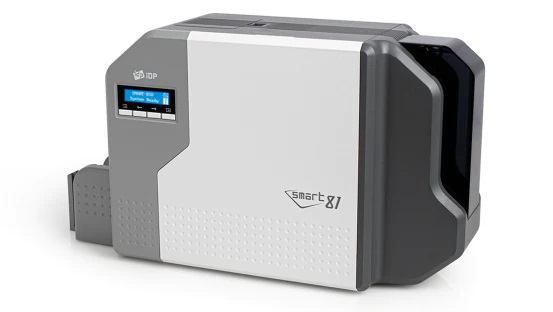

The IDP SMART-81S is a professional retransfer ID card printer designed for organizations that need high-quality, full-bleed identification cards printed on one side. With fast startup, reliable card handling, and options for advanced credential encoding, the SMART-81S is well suited to employee ID programs, student identification, membership cards, and access-control credentials.

Retransfer printing creates the image on a transfer film before applying it to the card. This produces edge-to-edge printing and supports compatible cards with embedded electronics or slightly uneven surfaces. IDP’s Rapid Retransfer Printing (RRP) technology helps the printer reach a ready-to-print state quickly, reducing delays when issuing cards.

Key Features and Specifications

Printing technology: Dye-sublimation and resin thermal retransfer
Print resolution: 300 dpi
Print sides: Single-sided printing
Print coverage: Full-bleed, edge-to-edge printing
Print speed: Up to 144 full-color cards per hour using a YMCK ribbon; actual throughput depends on configuration and print job
Input hopper: 200 cards
Output hopper: 100 cards
Error-card bin: 25 cards
Card size: Standard ISO CR80 ID cards, approximately 2.125″ × 3.375″
Card thickness: Approximately 30–64 mil, subject to configuration and card compatibility
Compatible card materials: PVC, polycarbonate (PC), PET, and composite PVC cards
Connectivity: USB and Ethernet
Display and controls: Two-line graphic LCD and four-button control panel
Operating systems: Manufacturer-listed support includes Windows 10/11, macOS, and Linux; confirm current driver compatibility with your computer and operating-system version
Warranty: Three-year Advance Exchange Warranty and lifetime printhead warranty, subject to applicable terms

Optional Encoding and Security Features

The SMART-81S can be configured for applications that require more than a printed photo ID. Available options depend on the selected configuration and compatibility with your credential technology.

Magnetic-stripe encoding: For compatible access, identification, and transaction cards
Contact smart-card encoding: For compatible chip-based credentials
Contactless smart-card encoding: For supported technologies such as MIFARE, DESFire, and other compatible contactless applications
Wi-Fi: Optional wireless connectivity on supported configurations
Physical and electronic locking: Optional security features to help protect the printer
Dual-sided printing upgrade: Check availability and compatibility if you anticipate needing to print on both sides in the future
Card lamination: The SMART-81L is an optional lamination solution for compatible SMART-81 configurations when additional durability or security features are required

Encoding modules, Wi-Fi, lamination equipment, and upgrade options are configuration-dependent and may require additional hardware or licensing. They are not necessarily included with the base SMART-81S printer.

Recommended Applications and Vertical Markets

Corporate and small-to-medium businesses: Employee photo IDs, staff identification, and facility badges where the primary information is printed on the front
K–12 schools: Student and staff IDs, photo identification, and compatible access credentials
Higher education: Student and faculty cards, campus identification, and compatible encoded credentials
Healthcare: Staff photo IDs and compatible identification credentials for clinics, medical offices, and healthcare facilities
Manufacturing and warehousing: Employee badges and facility identification programs at individual sites or across multiple locations
Membership organizations: Gym, club, association, and loyalty membership cards
Hospitality and visitor management: Staff IDs, visitor credentials, and identification cards for hotels, venues, and other guest-facing operations
Events and conferences: Single-sided attendee badges and event credentials with photos, names, company details, or barcodes

Why Choose a Retransfer Printer?

Retransfer technology is particularly useful when full-bleed card coverage, professional image quality, and compatibility with supported smart cards or uneven card surfaces are important. Compared with direct-to-card printing, the transfer-film process can provide more consistent coverage around the card edges and over compatible embedded-chip surfaces.

The SMART-81S is a practical choice when a single-sided card design meets your needs. If you require employee information, terms of use, emergency details, or other data on the reverse side, consider a dual-sided SMART-81D configuration instead. For applications demanding finer text and more detailed graphics, a 600 dpi SMART-81 high-resolution model may be a better fit.

Ribbons, Transfer Film, and Cleaning Supplies

Use compatible IDP SMART-81 consumables to maintain print quality and reliable operation. Common supplies include:

YMCK color ribbon: For full-color printing with a resin-black panel
Retransfer film: Required for the retransfer printing process
Ribbon and film bundles: Convenient options for replenishing both consumables together
Blank CR80 cards: Choose compatible PVC, composite PVC, PET, or other supported card materials for your application
Cleaning supplies: Use the recommended cleaning products and maintenance procedures to help preserve print quality and printer reliability

Confirm ribbon and film compatibility before ordering, particularly if you are switching from another printer model. Your card material, print design, expected volume, and encoding requirements can all affect the most appropriate supplies and configuration.

Shop IDSuperShop for Your ID Card Printing Needs

IDSuperShop offers ID card printers, blank cards, ribbons, retransfer film, cleaning supplies, and accessories for identification programs of different sizes. Whether you are setting up a new employee ID program, replacing an existing printer, or expanding your credential capabilities, selecting the right equipment and consumables can help simplify card issuance and avoid unnecessary costs.

If your requirements may change, compare the SMART-81S with dual-sided and high-resolution models before purchasing. Choosing the appropriate printer and options at the beginning helps ensure that your ID card system meets your current needs while leaving room for future growth.
