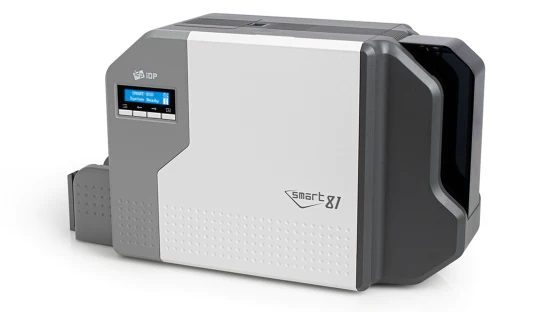

The IDP SMART-81D is a high-performance retransfer ID card printer designed for organizations that need professional, full-bleed identification cards printed on both sides. Combining reliable production, rapid startup, and flexible configuration options, the SMART-81D is well suited to employee ID programs, student credentials, access-control cards, and other applications where card quality and operational efficiency matter.
Retransfer printing produces the image on a transfer film before applying it to the card. This process provides edge-to-edge printing and supports compatible cards with embedded electronics or slightly uneven surfaces. IDP’s Rapid Retransfer Printing (RRP) technology heats the printer and transfer system quickly, helping reduce the wait before the first card is ready.
Key Features and Specifications
- Printing technology: Dye-sublimation and resin thermal retransfer
- Print resolution: 300 dpi
- Print sides: Automatic dual-sided printing
- Print coverage: Full-bleed, edge-to-edge card printing
- Print speed: Up to 144 cards per hour single-sided with YMCK, or up to 84 cards per hour dual-sided with YMCKK; actual speed depends on configuration and print job
- Input hopper: 200 cards
- Output hopper: 100 cards
- Error-card bin: 25 cards
- Card size: Standard ISO CR80 ID cards (approximately 2.125″ × 3.375″)
- Card thickness: Approximately 30–64 mil, subject to card and configuration compatibility
- Compatible card materials: PVC, polycarbonate (PC), PET, and composite PVC cards
- Connectivity: USB and Ethernet
- Display and controls: Two-line graphic LCD and four-button control panel
- Operating systems: Manufacturer-listed support includes Windows 10 and 11, Mac OS, and Linux; confirm current driver compatibility for your computer and operating-system version
- Warranty: Three-year Advance Exchange Warranty, subject to applicable terms
Optional Encoding and Security Features
The SMART-81D can be configured for more advanced credential applications with optional modules and accessories. Available capabilities depend on the selected configuration and compatible card technology.
- Magnetic-stripe encoding: Supports compatible magnetic-stripe credentials
- Contact smart-card encoding: For compatible chip-based identification and credential systems
- Contactless smart-card encoding: Available for supported technologies, including compatible MIFARE, DESFire, and iCLASS applications
- Wi-Fi: Optional wireless connectivity on supported configurations
- Physical and electronic locking: Available security options to help protect the printer and its operation
- Card lamination: Compatible with the optional SMART-81L lamination module for applications requiring additional card protection or security features
Encoding modules, wireless connectivity, and lamination equipment are not necessarily included with the base printer. Confirm the required options and compatibility with your existing access-control or credential system before ordering.
Recommended Applications and Vertical Markets
- Corporate and enterprise: Employee photo IDs, facility access credentials, department information, and employee identification programs across multiple locations
- Education: Student and faculty IDs, campus access credentials, library cards, and cards displaying schedules, policies, or other information on the reverse side
- Healthcare: Staff identification and compatible smart credentials for hospitals, clinics, and healthcare networks
- Government and public safety: Identification cards and compatible encoded credentials for agencies with defined card-design and security requirements
- Manufacturing and industrial operations: Employee badges, facility access cards, and standardized identification programs across multiple plants or facilities
- Hospitality, gaming, and membership: Staff IDs, member credentials, guest identification, and compatible access cards
- Events and conferences: Dual-sided event credentials with attendee details, access information, schedules, or other event-specific content
Why Choose a Retransfer Printer?
Retransfer technology is a strong option when organizations need edge-to-edge printing, professional image quality, and compatibility with supported card constructions that may not work as well with conventional direct-to-card printing. Printing on both sides provides additional space for employee or student information, access details, terms of use, barcodes, and other credential data.
The SMART-81D’s 300 dpi resolution is suitable for many standard identification programs. Organizations that routinely print very fine text, intricate graphics, or other detail-sensitive designs may want to consider the 600 dpi SMART-81D High Resolution model. If card longevity or additional physical security is a priority, an appropriate SMART-81L lamination configuration may also be worth considering.
Printer Supplies and Configuration
To keep your ID card program running smoothly, select the correct retransfer film and color ribbon for the printer and the information being printed. Dual-sided color printing commonly uses a YMCKK ribbon configuration, which provides a second resin-black panel for printing black text or information on the reverse side. The appropriate ribbon, film, card stock, and cleaning supplies depend on your print requirements and usage.
Before purchasing, verify whether you need magnetic-stripe or smart-card encoding, wireless connectivity, lamination, or other accessories. Choosing the correct configuration at the outset can help avoid compatibility issues and ensure the printer meets your organization’s card-design, security, and production requirements.
Shop IDSuperShop for ID card printers, compatible ribbons and retransfer film, blank cards, cleaning supplies, and identification accessories. If you are unsure which SMART-81 configuration or supplies are right for your application, contact our team for help comparing options before you order.
