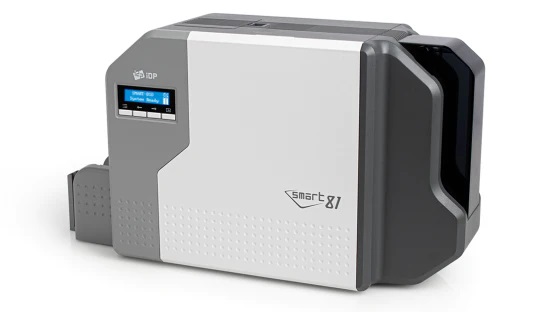

IDP SMART-81D Retransfer Duplex Printer 600 dpi

The IDP SMART-81D is a high-resolution retransfer ID card printer designed for organizations that need professional, full-bleed credentials with detailed graphics, clear text, and reliable double-sided printing. Its 600 × 600 dpi printing capability makes it a strong choice for identification programs where image detail, card presentation, and consistent print quality are important.

Unlike direct-to-card printers, retransfer technology prints the image onto a transfer film before applying it to the card. This process produces edge-to-edge coverage and supports printing on compatible cards with embedded electronics or slightly uneven surfaces. IDP’s Rapid Retransfer Printing (RRP) technology also helps reduce printer warm-up delays, making the SMART-81 platform well suited to organizations issuing credentials throughout the workday.

Key Features and Specifications

• Printing technology: Dye-sublimation and resin thermal retransfer
• Print resolution: 600 × 600 dpi high-resolution printing
• Print mode: Automatic dual-sided printing
• Print coverage: Full-bleed, edge-to-edge card printing
• Print speed: Up to approximately 84 dual-sided cards per hour using the YMCKK ribbon configuration; actual throughput varies by configuration and print job
• Input hopper: Up to 200 cards
• Output hopper: Up to 100 cards
• Error-card bin: 25 cards
• Card size: Standard CR80 ID cards
• Card thickness: Approximately 30–64 mil, subject to configuration and card compatibility
• Compatible card materials: PVC, PVC/PET composite, and compatible glossy printable cards
• Connectivity: USB and Ethernet; optional Wi-Fi on supported configurations
• Display: Two-line graphic LCD with four control buttons
• Warranty: IDP 3-Year Advanced Exchange Warranty and lifetime printhead warranty, subject to applicable terms

Optional Encoding, Security, and Lamination

The SMART-81 platform can be configured to support more than visual identification. Depending on the selected model and installed options, capabilities may include:

• Magnetic-stripe encoding: For compatible access, identification, and transaction systems
• Contact smart-card encoding: For compatible chip-based credentials
• Contactless smart-card encoding: For supported access-control and identification technologies
• Wi-Fi connectivity: Available as an option on supported configurations
• Security enhancements: Available features vary by model and configuration
• Card lamination: The optional SMART-81L laminator can add a protective laminate or security film to compatible SMART-81 printer configurations

Encoding modules, Wi-Fi, and lamination are configuration-dependent and should be confirmed when ordering. Lamination is not included with the standard printer.

Recommended Applications and Industries

• Corporate and enterprise: Employee photo IDs, access-control credentials, visitor badges, and multi-location employee identification programs
• Healthcare: Staff identification and compatible smart credentials for hospitals, clinics, and healthcare networks
• Government and public safety: Detailed identification cards and compatible secure credentials, subject to agency-specific requirements
• Higher education: Student and faculty IDs, campus access cards, and multi-function credentials
• Financial services: High-quality cards and compatible chip-based credentials for appropriate issuance applications
• Manufacturing and industrial operations: Employee identification, facility access badges, and durable credential programs across multiple sites
• Hospitality, gaming, and membership organizations: Professional-looking employee, member, and access credentials

Choose the Right Printer and Complete ID Solution with IDSuperShop

Selecting a card printer involves more than choosing print resolution. IDSuperShop helps organizations evaluate the complete identification workflow, including card design, photo capture, ID software, card stock, smart-card encoding, access-control compatibility, consumables, security requirements, and ongoing support.

The SMART-81D is worth considering when high-resolution, double-sided retransfer printing is a priority. For organizations that need standard-resolution retransfer printing, a different SMART-81 configuration may be more economical. Applications requiring extended card life or added tamper resistance may benefit from an appropriate lamination configuration. Where simpler, lower-cost cards are sufficient, a direct-to-card printer may be the better fit.

IDSuperShop can help you determine the right printer configuration, confirm compatibility with your existing systems, and plan an ID issuance solution for a single location or a distributed organization. If you are developing a new ID program or upgrading existing equipment, contact IDSuperShop before ordering so we can help align the printer, software, cards, encoding, and supplies with your actual requirements.
