094660 HID FARGO HDP6600 Dual-Side ID Card Printer with One Patch Material Laminator

“`html

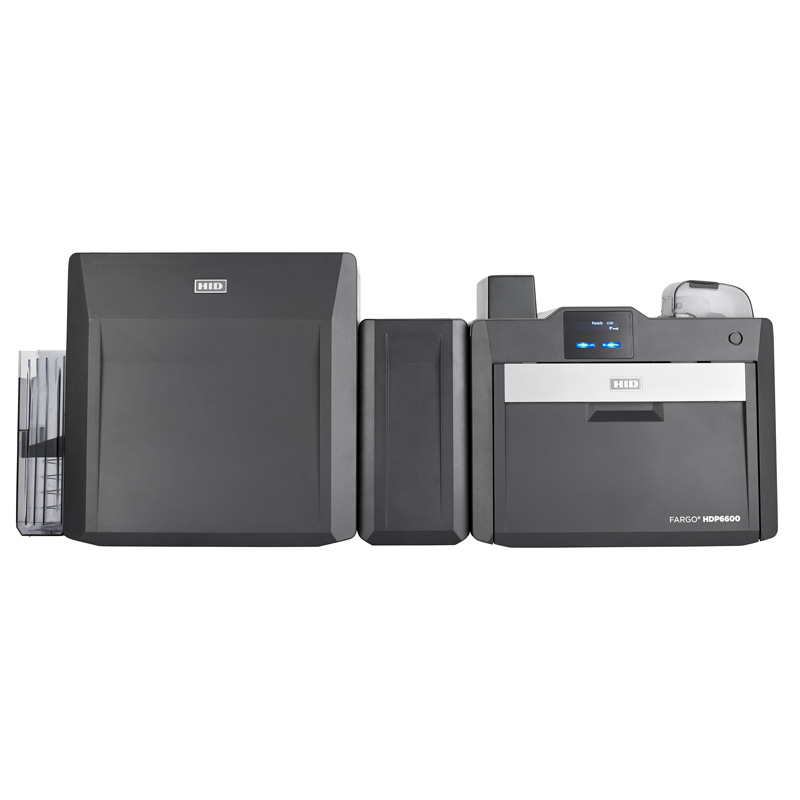

HID FARGO HDP6600 Dual-Sided High-Speed Retransfer Printer with One-Material Laminator

The HID FARGO HDP6600 Dual-Sided ID Card Printer with One-Material Laminator combines high-definition, 600 dpi retransfer printing with dual-sided card production and integrated card lamination. Designed for organizations that need professional identification cards with added protection against everyday wear, this configuration is well suited to enterprise ID programs, universities, healthcare networks, government agencies, and high-volume card production environments.

This configuration includes the HDP6600 dual-sided printer and the L1 one-material lamination module. The printer produces detailed, edge-to-edge card designs, while the laminator applies a compatible protective overlaminate to one or both sides of the card. Organizations can use a consistent laminate type across their credential program, choosing an appropriate option such as clear or holographic overlaminate.

HID’s innovative iON™ technology helps the HDP6600 reach optimal operating temperature in under 60 seconds, reducing warm-up delays. Combined with high-definition retransfer printing and integrated lamination, the system is designed for organizations that value image quality, productivity, and credential durability.

Key Features and Benefits

• High-definition 600 dpi printing: Produces sharp text, detailed graphics, logos, and photographic identification.
• Dual-sided printing: Prints on both sides of each card, making room for photos, names, employee details, barcodes, instructions, and other credential information.
• Included one-material laminator: The L1 lamination module supports one type of overlaminate material, such as clear or holographic. Depending on the application and settings, the same material can be applied to one or both sides of the card.
• Retransfer printing technology: Transfers the printed image from film onto the card, supporting edge-to-edge designs and high-quality results on compatible card materials.
• High-speed printing platform: The HDP6600 is rated for up to 230 cards per hour under specified YMCK-with-transfer-film conditions. Actual throughput will depend on card design, printing, and lamination requirements.
• Fast warm-up: HID iON technology helps the printer reach optimal operating temperature in under 60 seconds.
• Wasteless LMX lamination: Compatible PolyGuard LMX supplies eliminate the conventional carrier film and take-up core, helping reduce laminate material waste and consumable costs in suitable applications.
• Four-year printer warranty: This product listing specifies a four-year printer warranty. HID also lists a lifetime printhead warranty; confirm the applicable terms with your order.

HID FARGO HDP6600 with L1 Laminator Specifications

Why Choose Retransfer Printing?

Unlike direct-to-card printing, which applies the image directly to the card surface, retransfer printing first creates the image on a transfer film and then applies that film to the card. This process supports full-bleed designs and high-definition output, making it a strong choice for organizations that need detailed graphics, consistent image quality, and professional-looking credentials.

Retransfer technology is particularly useful for cards that incorporate photographic identification, fine text, complex logos, or designs that extend to the card edges. The HDP6600 combines this image quality with a high-speed printing platform to support regular or large-batch card issuance.

Included L1 One-Material Lamination Module

This printer configuration includes the HID FARGO HDP6600 L1 lamination module. The L1 is designed for organizations that want to apply one type of protective overlaminate material to their cards. For example, an organization can standardize on clear laminate for everyday protection or choose a compatible holographic material for an added visual security feature.

The L1 can apply its selected material to one or both sides of a card, depending on the intended application and configuration. This flexibility helps organizations balance card protection, appearance, and consumable use.

HID’s wasteless PolyGuard LMX overlaminates are designed without the conventional carrier film and take-up core used in many traditional laminating systems. This can reduce material waste and lower laminate consumable costs in high-volume applications. Actual savings depend on usage, laminate selection, and production volume.

Choosing the Right Overlaminate

Compatible HID FARGO HDP6600 PolyGuard LMX supplies are available in several formats. Options listed for this printer family include:

• Clear overlaminate: A versatile choice for protecting credential surfaces while preserving the card’s design.
• UV-resistant clear overlaminate: For applications where additional resistance to ultraviolet exposure is desirable.
• High-security orbit design: A patterned overlaminate option that adds a visible security feature to the credential.
• Half-patch overlaminate: For applications where partial card coverage is appropriate.
• Smart-chip cutout overlaminate: Designed with a cutout to accommodate a compatible smart-card chip area.

Not every overlaminate is appropriate for every card design or lamination setup. Confirm the specific supply part number, coverage requirements, chip position, and compatibility with the included L1 module before ordering.

L1 vs. L2: Which HDP6600 Laminator Do You Need?

The main difference between the HDP6600 L1 and L2 lamination modules is the number of overlaminate materials they support.

• L1 one-material lamination: Supports one selected type of overlaminate material. It is a practical choice when an organization wants to use the same laminate type throughout its card program.
• L2 two-material lamination: Supports two overlaminate materials, allowing a different material or laminate type to be used as required by the credential design and application.

If your organization needs one consistent laminate material, this SKU’s included L1 module may be the right choice. If you require two different laminate materials, ask us about an HDP6600 configuration with the L2 module.

Optional Card Encoding and Other Upgrades

This SKU includes dual-sided printing and the L1 lamination module. Card encoding is not identified as included in the base SKU. If your cards must work with an access control system or another credential application, specify the encoding technology required when requesting a quote.

• Magnetic-stripe encoding: For compatible cards and systems that use magnetic-stripe data.
• Contact smart-card encoding: For compatible chip cards that require electrical contact with a reader.
• Contactless smart-card encoding: For supported contactless credential technologies. Confirm the exact encoder, card technology, and system compatibility before ordering.
• Higher-capacity input options: Optional input configurations can help reduce reloads during larger print runs.
• Physical security options: Compatible locks and other security accessories may be available depending on the selected configuration.

When selecting encoding options, verify compatibility with the card technology, credential software, and existing access control or identity management system. An encoder alone does not guarantee compatibility with every credential technology.

Compatible Ribbons, Transfer Film, and Maintenance Supplies

Use compatible HID FARGO HDP6600 consumables to maintain print quality and dependable operation. Supplies listed for the HDP6600 include:

• 084911 YMCK ribbon: Full-color ribbon with resin black panel; approximately 750 images.
• 084912 YMCKK ribbon: Full-color ribbon with two resin black panels; approximately 600 images.
• 084900 clear HDP transfer film: Approximately 1,500 images per roll.
• PolyGuard LMX overlaminates: Compatible clear, UV-resistant, high-security patterned, half-patch, and smart-chip cutout options are available, subject to module and card-design compatibility.
• Cleaning kit and maintenance supplies: Compatible cleaning kits, rollers, and cleaning cards are available for routine maintenance.

Consumable yields are approximate and can vary with card coverage, design, and operating conditions. The ribbon, transfer film, and overlaminate are separate consumables; make sure you have the correct supplies for the printer and lamination configuration.

Applications for the HDP6600 with L1 Lamination

• Enterprise and corporate: Employee IDs, contractor badges, and facility credentials designed for frequent handling.
• Healthcare: Staff identification and credentials where professional presentation and added card protection are important.
• Education: Student and faculty IDs, campus credentials, and other school identification cards.
• Government and public sector: Identification and access credentials where card durability and configuration-specific security requirements matter.
• Service bureaus and centralized ID offices: High-volume production of laminated credentials for multiple departments, locations, or customers.

Is This HDP6600 Configuration Right for Your Organization?

The HID FARGO HDP6600 dual-sided printer with L1 one-material laminator is a strong option when your organization needs high-definition printing on both sides of a card plus the ability to apply a consistent protective overlaminate. It is particularly suitable for professional ID programs where image quality, productivity, and card durability are important.

If you need to encode cards for an existing access control system, use multiple overlaminate materials, or accommodate a specialized card design, confirm the required modules and supplies before purchase.

Need help selecting an HDP6600 configuration? Contact IDSuperShop for assistance with printer options, overlaminate selection, encoding requirements, and compatible consumables. Tell us what type of card you issue, how it will be used, and whether you need one- or two-sided lamination so we can help you choose the right setup.

“`
