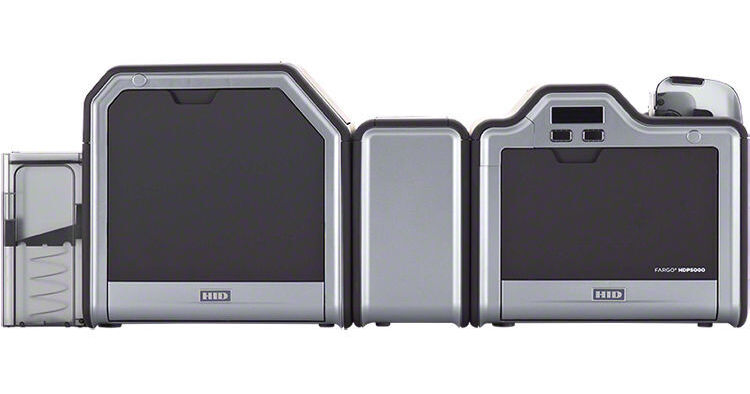

HID FARGO HDP5000e Dual-Side Printer with Single Side Lamination

The HID FARGO HDP5000e is a high-definition retransfer ID card printer designed for organizations that need professional-quality identification cards with detailed graphics, secure personalization, and reliable production. This configuration combines automatic dual-sided printing with single-sided lamination, providing a practical balance between card durability, security, and consumable costs.

Retransfer technology prints the image onto a specialized film before fusing it to the card surface. This process delivers full-bleed, edge-to-edge printing and supports compatible cards with embedded electronics or uneven surfaces. With the HDP5000e, organizations can print employee photos, logos, access information, barcodes, and other credential data on both sides, then apply a protective laminate to the designated side.

The HDP5000e’s modular design, SmartScreen interface, optional encoding capabilities, and built-in data-protection features make it a strong choice for medium-to-large organizations with ongoing identification needs.

Key Features and Specifications

• Printing technology: High-definition dye-sublimation and resin thermal retransfer
• Print resolution: 300 dpi
• Print sides: Automatic dual-sided printing
• Lamination: Single-sided lamination module included in this configuration
• Print coverage: Full-bleed, over-the-edge printing on compatible CR80 cards
• Print speed: Up to 133 cards per hour for single-sided YMCK printing with transfer film; actual output is lower when printing both sides, encoding, or laminating cards
• Card size: Standard CR80, approximately 3.375″ × 2.125″ (85.6 × 54 mm)
• Supported card thickness: Approximately 30–50 mil (0.762–1.27 mm), subject to card and configuration compatibility
• Supported card materials: Compatible PVC, composite PVC, PET, PETG, and polycarbonate cards; card material must be approved for the selected lamination process
• Input capacity: 100 cards standard; optional 200-card or dual-input hopper available for supported configurations
• Output capacity: Up to 200 cards, depending on configuration
• Connectivity: USB and Ethernet
• User interface: SmartScreen display with guided setup, maintenance, and troubleshooting prompts
• Warranty: Four-year printer warranty and lifetime printhead warranty, subject to HID’s applicable terms

Why Choose Dual-Sided Printing with Single-Sided Lamination?

Not every credential needs laminate on both sides. Many organizations print essential information on the front and supporting information on the reverse, but prioritize added protection for the side that receives the most handling or contains the most important visual information.

This configuration allows you to:

• Print on both sides: Include employee or student information, photographs, access details, barcodes, policies, emergency information, or other credential data.
• Protect the primary card face: Apply laminate to the selected side to help resist everyday wear and abrasion.
• Manage consumable costs: Use one laminate layer where it meets the application’s requirements rather than laminating both sides by default.
• Add visual security: Select compatible holographic overlaminate options to make visual credential checks easier and help deter counterfeiting.
• Support a scalable ID program: Take advantage of the HDP5000e’s modular platform and available encoding options.

Single-sided lamination is not equivalent to full-card, two-sided protection. If both sides need a protective layer, compare this configuration with the HDP5000e dual-sided lamination model.

Optional Encoding and Security Features

The HDP5000e supports optional technologies for organizations that need credentials to work with compatible access-control, identification, or card-based systems. Available capabilities depend on the installed modules and selected card technology.

• Magnetic-stripe encoding: For compatible access-control, identification, and transaction applications.
• Contact smart-card encoding: For compatible chip-based credentials.
• Contactless smart-card encoding: For supported contactless credential technologies.
• Proximity and RFID credentials: Printing and compatible encoding options for supported card technologies.
• Holographic transfer film: Compatible HDP film options can incorporate a visual security design.
• Holographic overlaminate: Compatible clear or patterned overlaminates can add protection and a visible security element.
• Fluorescent printing: Compatible specialty ribbons can add UV-reactive design elements where supported.
• Physical locks: Optional locks can help restrict access to card stock and printer consumables.
• Secure printing: TLS encryption, password protection, and resin-scramble data protection help safeguard card-personalization data.

Encoding modules, specialty ribbons, and security accessories may require additional hardware or consumables. Verify compatibility with your card technology and existing access-control system before ordering.

Recommended Applications and Vertical Markets

• Corporate and enterprise: Employee badges, facility access credentials, and standardized identification across departments and multiple locations.
• Government and public agencies: Secure identification cards and compatible encoded credentials for organizations with defined security and card-design requirements.
• Healthcare: Staff IDs and compatible access credentials for hospitals, clinics, laboratories, and healthcare networks.
• Higher education: Student, faculty, and staff IDs, campus access cards, and multifunction credentials.
• Manufacturing and industrial operations: Employee badges and access credentials for production facilities, warehouses, and multi-site organizations.
• Financial services: Compatible identification and smart-card programs where professional printing and added card protection are important.
• Hospitality and gaming: Staff credentials, membership cards, and other frequently handled cards that benefit from durable printing and visual security features.
• Retail, membership, and service bureaus: Gift, loyalty, membership, and personalized cards produced in recurring or higher-volume batches.

Choosing the Right Lamination Material

The HDP5000e supports specialized overlaminates designed for its lamination module. The best choice depends on the required card life, security level, card design, and whether a contact chip or magnetic stripe must remain accessible.

• Clear thermal-transfer overlaminate: A thinner protective option for compatible single-sided lamination configurations.
• Clear PolyGuard overlaminate: A thicker protective patch available in different thicknesses for added durability.
• Holographic PolyGuard: A protective overlaminate with a visible security pattern.
• Specialized chip cutouts: Selected overlaminates are available with cutouts for compatible contact-chip cards.
• Custom holographic designs: Custom security patterns may be available for projects with appropriate quantities and production lead times.

Not every overlaminate works in every module or cartridge position. Single-sided lamination uses the designated first laminate cartridge. Confirm the correct part number and compatibility before ordering. Also verify that your card material is suitable for the intended lamination process.

Recommended Ribbons, Transfer Film, Overlaminate, and Cards

Use compatible HID FARGO consumables to maintain print quality, reliable operation, and warranty compliance. Common supplies for the HDP5000e include:

• 084511 – YMCK ribbon: Full-color printing with resin black; approximately 500 images when used for single-sided full-color printing.
• 084512 – YMCKK ribbon: Full-color printing with two resin-black panels, useful for full-color printing on the front and black text or barcodes on the reverse; approximately 500 cards per roll under the applicable configuration.
• 084500 – Clear HDP transfer film: Transfer film for the HDP5000e; approximately 1,500 images.
• 084501 – Holographic HDP film: Compatible holographic transfer-film option; confirm current availability and compatibility.
• 082615 – Clear thermal-transfer overlaminate: Approximately 500 images; intended for compatible single-sided lamination modules.
• 082600 – Clear PolyGuard 0.6 mil overlaminate: Approximately 250 images.
• 082601 – Clear PolyGuard 1.0 mil overlaminate: Approximately 250 images.
• 082603 – Holographic PolyGuard 0.6 mil overlaminate: Approximately 250 images.
• 082604 – Holographic PolyGuard 1.0 mil overlaminate: Approximately 250 images.
• Compatible blank cards: Choose card materials approved for the HDP5000e and its lamination module.
• Cleaning supplies: Use compatible cleaning kits and follow HID’s recommended maintenance schedule.

Consumable yields are approximate and depend on ribbon type, card design, and printing configuration. Dual-sided printing, encoding, and lamination affect throughput and supply usage. Always confirm the correct ribbon, film, overlaminate, and card stock for your exact configuration before ordering.

Find the Right FARGO Configuration at IDSuperShop

The HID FARGO HDP5000e is a modular ID card printing platform, so selecting the right configuration means considering more than the printer itself. Card volume, card material, encoding technology, laminate type, security requirements, software, and ongoing supply costs all influence the best fit.

IDSuperShop offers FARGO printers, compatible ribbons, transfer film, overlaminates, blank cards, and maintenance supplies for a wide range of ID card programs. Whether you are upgrading an existing system or planning a new installation, our team can help you identify compatible products and compare configurations for your application.

Need help selecting the right printer or supplies? Contact IDSuperShop if you need assistance confirming card compatibility, choosing a single-sided or dual-sided lamination setup, selecting encoding options, or identifying the correct consumables for your ID card program.
