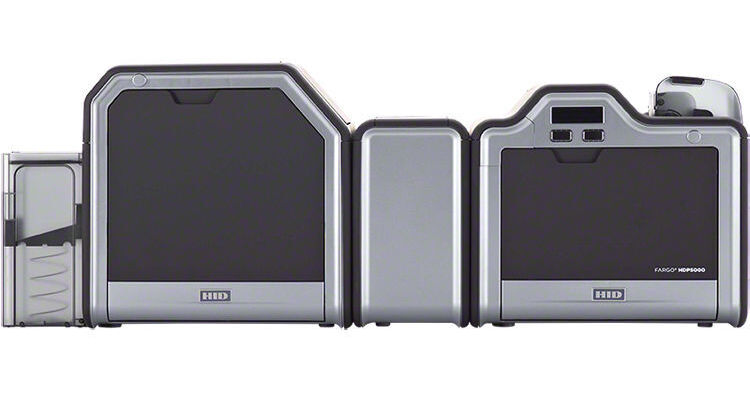

HID FARGO HDP5000e Dual-Side Printer with Dual-Side Lamination

The HID FARGO HDP5000e is a high-definition retransfer ID card printer designed for organizations that require professional-quality, secure identification cards with long-term durability. This configuration combines automatic dual-sided printing with dual-sided lamination, allowing organizations to print detailed credentials and apply protective laminate to both sides of the card in an integrated workflow.

Unlike direct-to-card printers, the HDP5000e prints images onto a specialized transfer film before fusing the image to the card surface. This retransfer process delivers full-bleed, edge-to-edge printing and helps maintain image quality on compatible cards with embedded electronics or uneven surfaces. The result is a professional credential with room for photographs, branding, access information, and other personalized data.

With dual-sided lamination, the HDP5000e is especially well suited to organizations that need credentials designed for frequent handling, extended service life, or additional visual security. Its modular architecture, encoding options, and secure printing features make it a versatile platform for enterprise identification programs.

Key Features and Specifications

• Printing technology: High-definition retransfer printing using dye-sublimation and resin thermal transfer
• Print resolution: 300 dpi
• Print sides: Automatic dual-sided printing
• Lamination: Integrated dual-sided lamination configuration
• Print coverage: Full-bleed, over-the-edge printing on compatible CR80 cards
• Print speed: Up to approximately 109 cards per hour using YMCK with transfer film and simultaneous dual-sided lamination; approximately 82 cards per hour using YMCKK with transfer film and simultaneous dual-sided lamination. Actual throughput varies by ribbon, card design, encoding, and system configuration.
• Standard card size: CR80, approximately 3.375″ × 2.125″ (85.6 × 54 mm)
• Supported card thickness: Approximately 30–50 mil (0.762–1.27 mm) for printing and lamination, subject to card and configuration compatibility
• Supported card materials: Compatible composite PVC, PET, PETG, polycarbonate, and other supported card constructions. Not all materials are suitable for lamination; standard PVC and ABS cards are not recommended for use with the HDP5000e lamination module.
• Input capacity: 100 cards standard; optional 200-card input hopper or dual-input hopper available on supported configurations
• Output capacity: Up to 200 cards, depending on configuration
• Connectivity: USB and Ethernet, with inline encoding configurations subject to interface and licensing requirements
• User interface: SmartScreen interface with guided setup, maintenance, and troubleshooting prompts
• Warranty: HID lists a four-year printer warranty and lifetime printhead warranty, subject to registration requirements and applicable terms

Why Choose Dual-Sided Lamination?

Cards used every day can be exposed to abrasion, repeated handling, friction from cardholders, and other conditions that gradually affect their appearance. Applying laminate to both sides helps protect the printed surfaces and can extend the useful life of compatible credentials.

Dual-sided lamination is particularly useful when both sides of a card contain important printed information or when the organization wants consistent protection across the entire credential. Depending on the selected laminate, the process can also add a visible security feature.

• Extended card life: Protective laminate helps resist everyday wear and abrasion.
• Consistent appearance: Protects printed information and branding on both sides of the credential.
• Holographic security options: Compatible holographic laminate can add a visible feature that helps staff identify authorized credentials.
• Smart-card compatibility: Specialized laminate options may be available for certain card designs, including approved chip cutouts.
• Reduced replacement frequency: Longer-lasting cards may reduce the operational cost and staff time associated with replacing worn credentials.

Card durability depends on the card material, laminate thickness and type, environment, and handling conditions. Lamination improves physical protection but does not by itself guarantee that a credential cannot be copied or altered.

Optional Encoding and Security Features

The HDP5000e can be configured to produce credentials that integrate with compatible access-control, identification, and other card-based systems. Available options depend on the installed modules and the card technology being used.

• Magnetic-stripe encoding: For compatible access-control, identification, and transaction applications.
• Contact smart-card encoding: For compatible chip-based credentials.
• Contactless smart-card encoding: For supported contactless credential technologies.
• Proximity and RFID credentials: Printing and compatible encoding options for supported card technologies.
• Holographic HDP film: Available compatible film options can add visual security features to the card design.
• Holographic overlaminate: Clear or security-patterned laminate options can add protection and help personnel visually inspect credentials.
• Fluorescent printing: Compatible specialty ribbons can add UV-reactive elements where supported by the printer configuration and consumables.
• Physical locks: Optional locks can help control access to card stock and consumables.
• Secure printing: TLS encryption, password protection, and resin-scramble data protection help safeguard card-personalization data.

Encoding modules, specialty ribbons, holographic materials, and physical security options may require additional hardware or consumables. Confirm compatibility with your credential technology and existing access-control system before ordering.

Recommended Applications and Vertical Markets

• Corporate and enterprise: Employee identification, facility access badges, and standardized credentials for large organizations and multi-location operations.
• Government and public agencies: Secure identification credentials and compatible encoded cards for agencies with defined card specifications and security requirements.
• Healthcare: Staff identification and compatible access credentials for hospitals, clinics, laboratories, and healthcare networks.
• Higher education: Student, faculty, and staff IDs; campus access cards; and multifunction credentials.
• Manufacturing and industrial operations: Durable employee badges and access credentials for facilities where cards are used throughout the workday.
• Financial services: Compatible smart-card and identification applications that require professional printing and additional card protection.
• Hospitality and gaming: Staff credentials, membership cards, and other cards that benefit from durable printing and visual security features.
• Retail, membership, and service bureaus: Gift, loyalty, membership, and other personalized cards where professional presentation and extended card life are important.

HDP5000e vs. Direct-to-Card Printing

Retransfer printing is a strong choice when an organization needs full-bleed coverage, detailed photo-quality images, or printing on compatible smart cards and other cards with uneven surfaces. The HDP5000e adds the benefits of dual-sided printing and lamination for organizations that need more durable credentials.

A direct-to-card printer may be more economical for simpler identification programs where edge-to-edge coverage and lamination are not required. For applications that demand higher print resolution or faster production, consider comparing the HDP5000e with other printers in the FARGO HDP family before making a decision.

Recommended Ribbons, Transfer Film, Overlaminates, and Cards

Using compatible HID FARGO consumables is important for consistent print quality, reliable operation, and warranty compliance. Common supplies for the HDP5000e include:

• 084511 – YMCK ribbon: Full-color printing with resin black; approximately 500 images.
• 084512 – YMCKK ribbon: Full-color printing with two resin-black panels, useful for dual-sided cards requiring black text on both sides; approximately 500 images.
• 084053 – Clear HDP film: Transfer film for the HDP5000e; approximately 1,500 images.
• 084054 – Holographic HDP film: Compatible holographic transfer film option; verify current availability and compatibility.
• 082600 and 082601 – Clear PolyGuard overlaminate: Available in 0.6 mil and 1.0 mil thicknesses, approximately 250 images per roll.
• 082603 and 082604 – Holographic PolyGuard overlaminate: Available in 0.6 mil and 1.0 mil thicknesses with a security pattern, approximately 250 images per roll.
• Compatible composite cards: Select cards approved for the HDP5000e and its lamination module. Confirm material compatibility before using PVC or other card constructions.
• Cleaning supplies: Use compatible cleaning kits, cards, and rollers according to HID’s recommended maintenance schedule.

Ribbon yields and film or laminate capacities are approximate and depend on the consumable type and printing configuration. Dual-sided printing, encoding, and lamination can affect production speed and the supplies required. Confirm the correct consumables for your specific configuration before placing an order.

Find the Right FARGO Configuration at IDSuperShop

The HID FARGO HDP5000e is a flexible platform, but selecting the right configuration involves more than choosing a printer. Consider your card volume, security requirements, card material, encoding technology, laminate selection, software, and the number of locations where cards will be issued.

IDSuperShop offers FARGO printers, compatible ribbons, transfer film, overlaminates, blank cards, and maintenance supplies. Whether you are upgrading an existing credential program or planning a new installation, our team can help you identify compatible products and compare options for your application.

Need help choosing the right printer or supplies? Contact IDSuperShop before ordering if you need assistance confirming card compatibility, encoding requirements, laminate selection, or the best configuration for your ID card program.
