Matica´s XL8300 retransfer printer is a unique solution designed to issue high quality oversized cards for the event management industry.
Engineered to print
up to 128 full color cards per hour, the XL8300 comes with a 100 input and
output hopper and personalizes cards that are 3.37” x 4.88”.

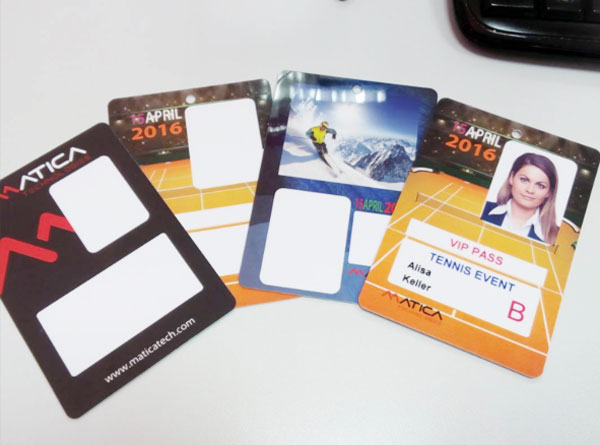

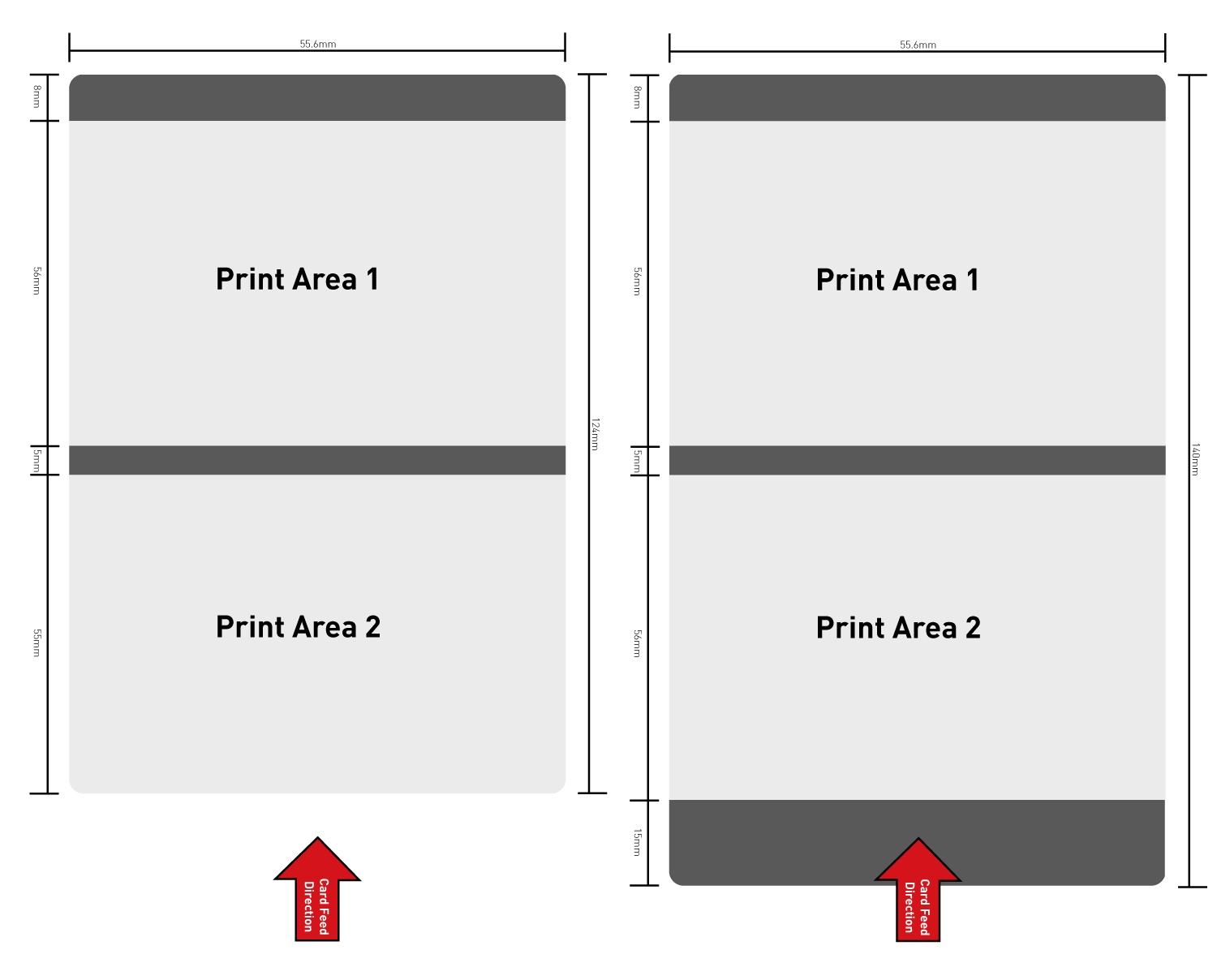

Each card has 2 printable areas that can easily be customized for perfect badges.
The XL8300 can print text, logo and images in UV ink and
prints on a range of card materials including PVC, ABS and PET.
Optional contactless encoding is available.
Supported OS include Windows XP SP3 (32 bits), Win 7, Win 8, and Win 8.1 (32 & 64bits).
The XL8300 features a warranty of 36 months or 100,000
prints (whatever comes first). Lifetime warranty on the printhead is offered.
The event management and conferencing market is a growth sector that includes conventions, trade shows and sports events such as the Olympics, Formula One,
golf, football, tennis and all other competitions. Similarly, corporate environments may need wide format cards where access control requires immediate personal
identification.
At sites of specialized security the XL8300 has the option to encode contactless cards for electronic access control. Further, the XL8300 can print text, logo and images in UV ink and prints efficiently on a range of card materials
including PVC, ABS and PET so its flexibility surpasses the market’s alternative solutions. Producing non-standard, wide format cards that reflect the calibre of events
and conference organizers’ own branding is a challenge in today’s market, and it is critical that companies can feel confident that visitor and guest cards show
them in a good light.
The XL8300 achieves that, in part because its retransfer technology is superior. It ́s compact design making it supremely practical and a unique solution to issue
wide badge formats on site. The XL8300 is therefore entering a market with limited competition and offers a unique solution to issue wide badge format in color HQ printing based on Matica’s most sought after printer in the desktop
arenas: the XID8300.
As one the newest members to Matica’s XID Series 8 family, the new XL8300 also benefits from its proven and well-known retransfer technology and offers the biggest individually printable areas in the market.
Specs:
Print
Method
- Dye-sublimation retransfer (YMCK) / Thermal
transfer (Monochrome “K”)
Print
Mode
- Single side retransfer printing on oversized
cards
Print
Resolution
- 300 dpi
Print
Speed
- Up to 128 cards per hour
Printhead
- Lifetime warranty (using EDIsecure®
materials)
Card
Types
- PVC, ABS, PET
Card
Thickness
- 0.25 – 1.02 mm (hopper adjustment required)
Input
Hopper Capacity
- 100 cards (0.76 mm)
Output
Hopper Capacity
- 100 cards (0.76 mm)
Interface
- USB 2.0 and Ethernet
Operating
System Support
- Support Windows XP, 7, 8
Power
Supply
- 100/120 V and 220/240 V, 50/60 Hz FCC, CE,
UL, GOST-R, and CCC approved
Operating
Environment
- 15°C to 30°C, 35% to 70% noncondensing
humidity
Printer
Dimensions
- 549 x 322 x 411 mm (WxDxH) (Incl. oversized
card feeder and hopper)
Weight
- 15.6 kg (excluding optional built-in items)
Matica XL8300 Printer.pdf
