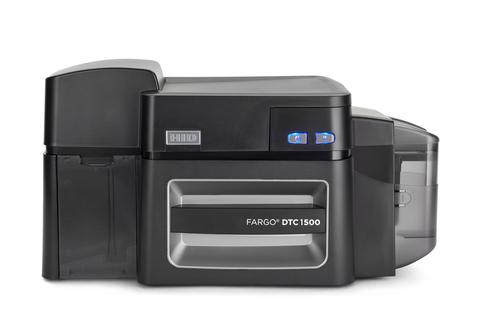

With the new HID FARGO® DTC1500 ID card printer you get professional quality, full-color ID card credentials. Designed for medium-to-large sized organizations, schools and government institutions looking for reliable, long-term solutions. FARGO’s professional-grade DTC1500 ID card printer/encoder withstands the daily demands of high-volume ID card printing. Additional security features – such as password protection and data decryption, hoppers for managing different ID card stocks and optional holographic or fluorescent (UV) overlaminate that dramatically increase ID card durability also make this the ideal choice for organizations in need of advanced ID card protection and performance.
The new DTC1500 ID card printer features a modular design that allows you to add at any time, new functionality as the needs of your organization evolve. The Wi-Fi® accessory enables you to print ID cards anytime and anywhere, over any secured wireless network. The DTC1500 is an ENERGY STAR® certified product, meaning that it’s an energy-efficient photo ID printing solution that supports corporate sustainability initiatives while reducing costs, as the default time for sleep mode has been lowered from two hours to five minutes, and printer design enhancements reduce the printer’s power consumption while in standby or sleep mode.
The DTC1500 is fully compatible with HID Asure ID® Card Personalization software which allows for the creation and encoding of custom employee or contractor ID cards, as well as HID Global’s EasyLobby® Secure Visitor Management solutions which is a perfect solution for developing visitor ID badges easily and on demand.
Backed by a global three-year warranty, this new seventh-generation FARGO ID card printer/encoder can be seamlessly integrated to work with other HID products, ensuring that you receive and retain the maximum value from your HID Global Fargo secure identity solutions!
Printer Specifications:
Print Method- Dye sublimation / resin thermal transfer.
Resolution- 300 dpi (11.8 dots/mm) continuous tone.
Colors- Up to 16.7 million / 256 shades per pixel.
Print Speed- 6 seconds per card (K*); 8 seconds per card (KO*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*).
Accepted Card Size- CR-80 (3.375 ̋ L x 2.125 ̋ W / 85.6 mm L x 54 mm W); CR-79 Adhesive Back (3.313 ̋ L x 2.063 ̋ W / 84.1 mm L x 52.4 mm W).
Accepted Card Thickness- Print only: .009 ̋ – .040 ̋ / 9 mil – 40 mil / .229 mm – 1.016 mm; print / lamination: .030 ̋ – .040 ̋ / 30 mil – 40 mil / .762 mm – 1.02 mm.
Print Area- CR-80 edge-to-edge (3.36 ̋ L x 2.11 ̋ W / 85.3 mm L x 53.7 mm W); CR-79 (3.3 ̋ L x 2.04 ̋ W / 83.8 mm L x 51.8 mm W).
Accepted Card Types- PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish; rewrite.
Input Hopper Card Capacity- Input card hopper (200 cards).
Output Hopper Card Capacity- Up to 100 cards (.030 ̋ / .762 mm).
Reject Hopper Card Capacity- Up to 100 cards (.030 ̋ / .762 mm) – same-side input/output card hopper or lamination module required.
Communications Interface- USB 2.0 and Ethernet with internal print server.
Software Drivers- Windows® 10 (32 bit & 64 bit) / Windows® 7 / Windows® 8 (32 bit & 64 bit) / MAC OS X 10.5/10.6/10.7/10.8 / Linux.
Display- User friendly, SmartScreenTM graphical display.
Memory- 32 MB RAM.
Encoding Options- 125 kHZ (HID Prox) reader; 13.56 MHz (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693) read/write encoder; Contact Smart Card Encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3.
Weight- Single-sided printer: 9 lbs / 4.1 Kg; dual-sided printer: 11 lbs / 5 Kg; printer + lam: 20 lbs / 9.1 Kg.
Dimensions- Single-sided printer: 9.8 ̋ H x 18.1 ̋ W x 9.2 ̋ D / 249 mm H x 460 mm W x 234 mm D Dual-sided printer: 9.8 ̋ H x 18.7 ̋ W x 9.2 ̋ D / 249 mm H x 475 mm W x 234 mm D Printer + lam: 18.9 ̋ H x 18.7 ̋ W x 9.2 ̋ D / 480 mm H x 475 mm W x 234 mm D.
Encoding Options- Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard/SE/SR/Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3.
Supported Access Control Credential Programming- iCLASS® Standard/SE/SR/Seos, MIFARE ClassicTM, MIFARE DESFire® EV1, HID Prox.
Printer Options- Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS®, MIFARE®, and contact smart card encoding); Ethernet-enabled printer supports wireless accessory; dual-sided printing module; same-side input/output card hopper; locking card input/output hopper; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; Ethernet with internal print server; secure proprietary consumables system.
Software- Swift ID embedded badging application, FARGO Workbench diagnostic utility with Color Assist spot-color matching.
Printer Security- Printer access password protected.
Warranty- HID FARGO offers a three-year Standard Limited Warranty covering parts and depot repair labor. The Standard Limited Warranty also includes On-Call Express (loaner printer) service for the first year of warranty. Extended support is available with a Gold Support Plan.
